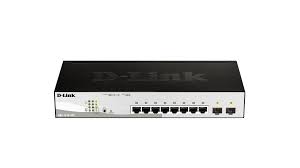

D-Link DGS-1210-10P Web Smart 10-Port Gigabit PoE Switch with 2 1000BASE-T/SFP Combo Ports

Technical Specifications

General

Hardware Version
• Rev. F

10/100/1000 Ports
• 8 (DGS-1210-10, DGS-1210-10P, DGS-1210-10MP)

100/1000 SFP Ports
• 2 (DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-26)

COMBO Ports (10/100/1000 or 100/1000 SFP)
• 4 (DGS-1210-28, DGS-1210-28P, DGS-1210-28MP)
• 4 (DGS-1210-52, DGS-1210-52MP)

Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control
• IEEE 802.3af/at compliance (for PoE ports on PoE models)

Network Cables
• UTP Cat. 5, Cat. 5e (100 m max.)

Duplex Mode
• Full/half-duplex for 10/100 Mbps
• Full-duplex for 1000 Mbps

Media Interface Exchange
• Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Capacity
• DGS-1210-10P: 20 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 8K entries

Static MAC Addresses
• 256 entries

Max. 64 Byte Packet Fwd Rate
• DGS-1210-10: 14.88 Mpps
• DGS-1210-10P: 14.88 Mpps
• DGS-1210-10MP: 14.88 Mpps
• DGS-1210-26: 38.7 Mpps
• DGS-1210-28: 41.7 Mpps
• DGS-1210-28P: 41.7 Mpps
• DGS-1210-28MP: 41.7 Mpps
• DGS-1210-52: 77.4 Mpps
• DGS-1210-52MP: 77.4 Mpps

Packet Buffer Memory
• DGS-1210-10: 4.1 Mbits
• DGS-1210-10P: 4.1 Mbits
• DGS-1210-10MP: 4.1 Mbits
• DGS-1210-26:  4.1 Mbits
• DGS-1210-28: 4.1 Mbits
• DGS-1210-28P: 4.1 Mbits
• DGS-1210-28MP: 4.1 Mbits
• DGS-1210-52: 12 Mbits
• DGS-1210-52MP: 12 Mbits

CPU Memory
• DDR3 128 MB

Flash Memory
• 32 MB

Power over Ethernet (PoE)

PoE Standards
• DGS-1210-10: N/A
• DGS-1210-10P: 802.3af (PoE) and 802.3at (PoE+)
• DGS-1210-10MP: 802.3af (PoE) and 802.3at (PoE+)
• DGS-1210-26: N/A
• DGS-1210-28: N/A
• DGS-1210-28P: 802.3af (PoE) and 802.3at (PoE+)
• DGS-1210-28MP: 802.3af (PoE) and 802.3at (PoE+)
• DGS-1210-52: N/A
• DGS-1210-52MP: 802.3af (PoE) and 802.3at (PoE+)

PoE Capable Ports
• DGS-1210-10: N/A
• DGS-1210-10P: Ports 1 – 8 (PoE+)
• DGS-1210-10MP: Ports 1 – 8 (PoE+)
• DGS-1210-26: N/A
• DGS-1210-28: N/A
• DGS-1210-28P: Ports 1 – 24 (PoE+)
• DGS-1210-28MP: Ports 1 – 24 (PoE+)
• DGS-1210-52: N/A
• DGS-1210-52MP: Ports 1 – 48 (PoE+)

PoE Power Budget
• DGS-1210-10: N/A
• DGS-1210-10P: 65 W
• DGS-1210-10MP: 130 W
• DGS-1210-26: N/A
• DGS-1210-28: N/A
• DGS-1210-28P: 193 W
• DGS-1210-28MP: 370 W
• DGS-1210-52: N/A
• DGS-1210-52MP: 370 W

LEDs
• Power per device (all models)
• Console per device (all models)
• Link/Activity/Speed per port (all models)
• PWR Max (DGS-1210-10P, -10MP, -28P, -28MP, -52MP only)
• Fan Error (DGS-1210-28P, -28MP, -52MP only)

Physical & Environmental

Power Input
• DGS-1210-10: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-10P: 54.0 V DC external power adapter
• DGS-1210-10MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-26: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-28: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-28P: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-28MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-52: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
• DGS-1210-52MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply

Max. Power Consumption (PoE enabled)
• DGS-1210-10: N/A
• DGS-1210-10P: 81.9W/100V; 80.6W/240V
• DGS-1210-10MP: 152.3W/100V; 148.7W/240V
• DGS-1210-26: N/A
• DGS-1210-28: N/A
• DGS-1210-28P: 263.9W/100V; 247.4W/240V
• DGS-1210-28MP: 446.1W/100V; 424.8W/240V
• DGS-1210-52: N/A
• DGS-1210-52MP: 478.9W/100V; 454.1W/240V

Max. Power Consumption (PoE disabled)
• DGS-1210-10: 6.31W/100V; 6.33W/240V
• DGS-1210-10P: 7.6W/100V; 7.5W/240V
• DGS-1210-10MP: 8.5W/100V; 9.4W/240V
• DGS-1210-26: 15.22W/100V; 15.11W/240V
• DGS-1210-28: 17.32W/100V; 16.94W/240V
• DGS-1210-28P: 30.6W/100V; 28.1W/240V
• DGS-1210-28MP: 29.8W/100V; 9.0W/240V
• DGS-1210-52: 34.85 W/100V; 34.2 W/240V
• DGS-1210-52MP: 54 W/100V; 54.4 W/240V

Standby Power Consumption
• DGS-1210-10: 2.03 W/100V; 2.07W/240V
• DGS-1210-10P: 2.5 W/100V; 2.5W/240V
• DGS-1210-10MP: 4.3 W/100V; 5.2W/240V
• DGS-1210-26: 5.01 W/100V; 5.06W/240V
• DGS-1210-28: 6.49 W/100V; 6.55W/240V
• DGS-1210-28P: 19.6 W/100V; 6.6W/240V
• DGS-1210-28MP: 18.5 W/100V; 7.1W/240V
• DGS-1210-52: 13.7 W/100V; 13.9W/240V
• DGS-1210-52MP: 32 W/100V; 31.6W/240V

Acoustics
• DGS-1210-10: 0 dB(A)
• DGS-1210-10P: 0 dB(A)
• DGS-1210-10MP: 0 dB(A)
• DGS-1210-26: 0 dB(A)
• DGS-1210-28: 0 dB(A)
• DGS-1210-28P: High speed: 51.7 dB(A); Low speed: 44.9 dB(A)
• DGS-1210-28MP: High speed: 51.7 dB(A); Low speed: 44.9 dB(A)
• DGS-1210-52: 0 dB(A)
• DGS-1210-52MP: High speed: 52.4 dB(A); Low speed: 47.6 dB(A)

Heat Dissipation
• DGS-1210-10: 21.53 BTU/hr (100V); 21.59 BTU/hr (240V)
• DGS-1210-10P: 279.59 BTU/hr (100 V); 275.04 BTU/hr (240 V)
• DGS-1210-10MP: 519.51 BTU/hr (100 V); 507.23 BTU/hr (240 V)
• DGS-1210-26: 51.93 BTU/hr (100V); 51.57 BTU/hr (240V)
• DGS-1210-28: 59.09 BTU/hr (100V); 57.79 BTU/hr (240V)
• DGS-1210-28P: 900.36 BTU/hr (100 V); 844.23 BTU/hr (240 V)
• DGS-1210-28MP: 1521.99 BTU/hr (100 V); 1449.49 BTU/hr (240 V)
• DGS-1210-52: 118.92 BTU/hr (100V); 116.7 BTU/hr (240V)
• DGS-1210-52MP: 1634.01 BTU/hr (100 V); 1549.29 BTU/hr (240 V)

Fans
• DGS-1210-10: No
• DGS-1210-10P: No
• DGS-1210-10MP: No
• DGS-1210-26: No
• DGS-1210-28: No
• DGS-1210-28P: 2
• DGS-1210-28MP: 2
• DGS-1210-52: No
• DGS-1210-52MP: 3

Operating Temperature
• 23°F to 122°F (-5°C to 50°C)

Storage Temperature
• -4°F to 158°F (-20°C to 70°C)

Operating Humidity
• 0% to 95% relative humidity

Storage Humidity
• 0% to 95% relative humidity

Dimensions (W x D x H)
• DGS-1210-10: 11.0” x 5.0” x 1.73”; (280 x 126 x 44 mm)
• DGS-1210-10P: 11.0” x 5.0” x 1.73”; (280 x 126 x 44 mm)
• DGS-1210-10MP: 13.0” x 7.0” x 1.73”; (330 x 180 x 44 mm)
• DGS-1210-26: 17.3” x 5.5” x 1.73”; (440 x 140 x 44 mm)
• DGS-1210-28: 17.3” x 5.5” x 1.73”; (440 x 140 x 44 mm)
• DGS-1210-28P: 17.3” x 9.8” x 1.73”; (440 x 250 x 44 mm)
• DGS-1210-28MP: 17.3” x 9.8” x 1.73”; (440 x 250 x 44 mm)
• DGS-1210-52: 17.3” x 8.3” x 1.73”; (440 x 210 x 44 mm)
• DGS-1210-52MP: 17.3” x 16.9” x 1.73”; (440 x 430 x 44 mm)

Weight
• DGS-1210-10: 2.16 lbs (0.98 kg)
• DGS-1210-10P: 2.1 lbs (0.95 kg)
• DGS-1210-10MP: 3.9 lbs (1.77 kg)
• DGS-1210-26: 4.54 lb (2.06 kg)
• DGS-1210-28: 4.74 lb (2.15 kg)
• DGS-1210-28P: 8.3 lbs (3.75 kg)
• DGS-1210-28MP: 8.7 lbs (3.94 kg)
• DGS-1210-52: 7.6 lb (3.46 kg)
• DGS-1210-52MP: 13.8 lbs (6.26 kg)

MTBF
• DGS-1210-10: 1,380,058 hours
• DGS-1210-10P: 729,258 hours
• DGS-1210-10MP: 1,274,005 hours
• DGS-1210-26: 1,082,534 hours
• DGS-1210-28: 992,594 hours
• DGS-1210-28P: 469,262 hours
• DGS-1210-28MP: 277,967 hours
• DGS-1210-52: 400,667 hours
• DGS-1210-52MP: 236,406 hours

EMI Certifications
• CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

Safety Certifications
• CB, UL, BSMI, CCC

Software Features – All Models

L2 Features
• MAC Address Table
• 8K entries
• IGMP Snooping
• IGMP v1/v2 Snooping
• IGMP v3 awareness
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation:
• Maximum of 8 groups/8 ports per group
• LLDP
• LLDP-MED
• Jumbo Frame
• Up to 10,000 bytes
• Spanning Tree Protocol
• 802.1D STP
• 802.1W RSTP
• 802.1s MSTP
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Port Mirroring
• One-to-One
• Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• Configurable MDI/MDIX
• MLD snooping v1/v2 (256 groups)

VLAN
• 802.1Q
• VLAN Group
• Max. 256 static VLAN groups
• Configurable VID from 1 – 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Max. 10 user-defined OUI
• Max. 8 default OUI
• Auto Surveillance VLAN

Quality of Service (QoS)
• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
• QoS based on:
• 802.1p priority queues
• DSCP
• MAC address
• EtherType
• IP address
• Protocol type
• ToS
• IP preference
• IPv6 Traffic Class
• TCP/UDP port

L3 Features
• IP interface
• Supports 4 interfaces
• IPv6 Neighbor Discovery (ND)
• Static routing
• 124 IPv4 static route entries
• 50 IPv6 static route entries

Access Control List (ACL)
• Max. 50 access lists
• Max. 768 rules shared by IPv4, MAC, and IPv6
• Each rule can only be associated with a single port
• ACL based on
• MAC address
• 802.1p priority mask
• VID mask
• Source/destination MAC address mask
• EtherType mask
• IP address
• Source/destination IP address mask
• DSCP mask
• Protocol type mask
• TCP/UDP port number mask
• IPv6 address
• Source/destination IP address mask
• DSCP mask
• Protocol type mask
• TCP/UDP port number mask
• IPv6 traffic class mask

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• Traffic segmentation
• SSH v2
• TLS v1.0
• DoS attack prevention
• 802.1X Port-based Access Control
• Port Security
• Supports up to 64 MAC addresses per port
• ARP Spoofing Prevention
• Max. 127 entries
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
• ARP Inspection
• Max. 256 entries
• IPv4 Inspection
• Max. 127 entries
• IPv6 Inspection
• Max. 63 entries
• DHCP Snooping
• Max. 512 entries

AAA
• 802.1X Authentication
• Supports local/RADIUS database
• Supports port-based access control
• Supports EAP, OTP, TLS, TTLS, PEAP
• Max. 128 entries when using local database
• IPv6 RADIUS server
• Support MD5 authentication

OAM
• Cable diagnostics
• Factory reset

Management
• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
• Supports v1/v2c/v3
• SNMP Trap
• Backup/upgrade firmware
• Smart Wizard
• Upload/download configuration file
• BootP/DHCP Client
• System Log
• Max. 500 log entries
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time setting
• SNTP
• RMONv1
• Trusted host
• Dual image
• Dual configuration

Green v3.0 Technology
• Power Saving by:
• Link Status
• Time-based PoE: PoE ports can be turned on/off by port or system through schedule
• System hibernation
• Port shut off
• Cable length detection

MIBs
• RFC1212 Concise MIB Definitions
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
• RFC1493 Bridge MIB
• RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
• RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB
• RFC271, RFC1757, RFC2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB
• RFC2674 802.1p MIB
• Interface Group MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4022 MIB for TCP
• RFC4113 MIB for UDP
• RFC2389 MIB for Diffserv.
• RFC2620 RADIUS Accounting Client MIB
• Private MIB
• PoE MIB
• DDP MIB
• LLDP-MED MIB

RFC Standards
• RFC791 IP
• RFC768 UDP
• RFC793 TCP
• RFC792 ICMPv4
• RFC2463, RFC4443 ICMPv6
• RFC826 ARP
• RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP)
• RFC2573 SNMP Applications
• RFC2461, RFC4861 Neighbor Discovery for IPv6
• RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC2464 IPv6 over Ethernet and definition
• RFC4291 IPv6 Addressing Architecture
• RFC2893, RFC4213 IPv4/IPv6 dual stack function

Ordering Information
• DGS-1210-10 8 10/100/1000BASE-T and 2 1G SFP Ports L2+ Smart Managed Switch
• DGS-1210-10P 8 10/100/1000BASE-T PoE and 2 1G SFP Ports L2+ Smart Managed Switch, 65W PoE Budget
• DGS-1210-10MP 8 10/100/1000BASE-T PoE and 2 1G SFP Ports L2+ Smart Managed Switch, 130W PoE Budget
• DGS-1210-26 24 10/100/1000BASE-T and 2 1G SFP Ports L2+ Smart Managed Switch
• DGS-1210-28 24 10/100/1000BASE-T and 4 1G RJ45/SFP COMBO Ports L2+ Smart Managed Switch
• DGS-1210-28P 24 10/100/1000BASE-T PoE and 4 1G RJ45/SFP COMBO Ports L2+ Smart Managed Switch, 193W PoE Budget
• DGS-1210-28MP 24 10/100/1000BASE-T PoE and 4 1G RJ45/SFP COMBO Ports L2+ Smart Managed Switch, 370W PoE Budget
• DGS-1210-52 48 10/100/1000BASE-T and 4 1G RJ45/SFP COMBO Ports L2+ Smart Managed Switch
• DGS-1210-52MP 48 10/100/1000BASE-T PoE and 4 1G RJ45/SFP COMBO Ports L2+ Smart Managed Switch, 370W PoE Budget

Warranty Information
• Warranty: Lifetime ¹

Optional 1 Gbps SFP Transceivers
• DGS-712 1000BASE-T SFP Transceiver
• DEM-310GT 1000BASE-LX SFP Transceiver, Single-mode
• DEM-311GT 1000BASE-SX SFP Transceiver, Multimode
